Description

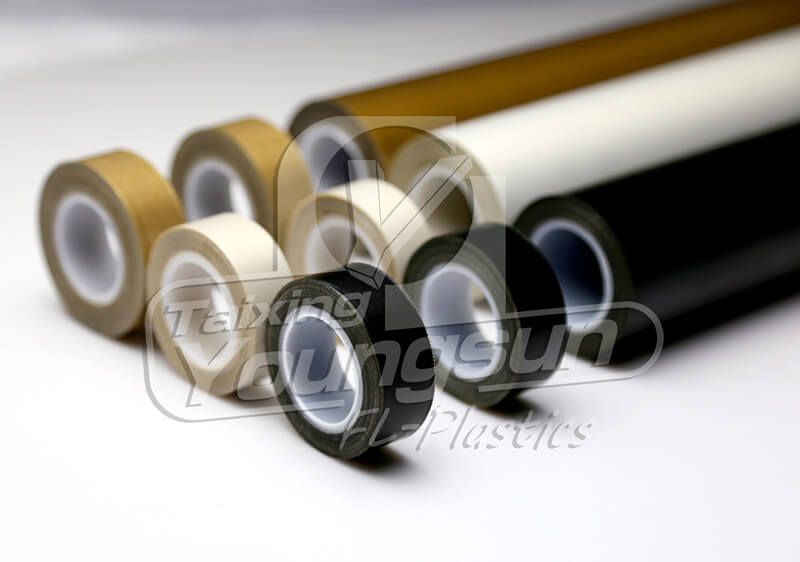

Teflon Adhesive Sheet YS7012AJ, PTFE adhesive fabric Industrial Series
Teflon adhesive sheet is using PTFE coated fiberglass fabric as basic material, and coated with silicone pressure adhesive(PSA). This tape has easy release surface and cost-effective property, widely used in Packaging, plastic bag sealing, wire and cable insulation, LCD/FPCB/PCB bonding release, laminating of PVC window and so on.
Properties of Teflon adhesive sheet
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Perfect solution for tough environment transportation
Has strong dielectric strength
outstanding mechanical strength
High chemical resistant
Superior non-stick surface, easy to release and clean
Resistance to UV
Resistance to HF and RF
Cost effective
Adhesion can be customized
Offering long lasting easy release property
Technical Data Sheet of YS7012AJ PTFE adhesive fabric
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC SELF ADHESIVE | INDUSTRIAL SERIES | SILICONE PSA |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1250 mm | 39.5, 49.3 inches |
| Backing Thickness PTFE glass | 0.12 mm | 0.0047 inches |
| Total Thickness PTFE glass and adhesive | 0.17 mm | 0.0067 inches |
| Baking weight PTFE glass | 250 g/m² | 7.37 oz/yd² |
| Tensile Stength PTFE glass | 235 N/cm Warp | 134 lbs/inches Warp |
| 215 N/cm Fill | 123 lbs/inches Fill | |
| Adhesion | 5.8 N/cm | 52.6 oz/inches |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
- Color available: Brown, Black, White
- For samples of Teflon Adhesive Sheet, please feel free to contact us.
