Introduction
PTFE fabric porous series combines fiberglass with lower level of PTFE coating, which is designed to allow for the escape of volatile gas and air circulation.
Porous PTFE fabric is used in applications which need airflow pass throw the fabric under pressure, normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding in the manufacturing of composite aircraft components, release sheet in the heat sealing machines, grinding wheels and so on.
Specifications of PTFE Fabric Porous Series
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | POROUS SERIES | PTFE |
| PTFE Fabric Porous Serie | |||||
|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Normal Thickness (mm) | Weight (g/m2) | PTFE Content (%) | Tensile Strength Warp/Fill (N/cm) |
| YS9003P-ESONE | 1000, 1250, 1500 | 0.025 | 40 | 50 | 60/52 |

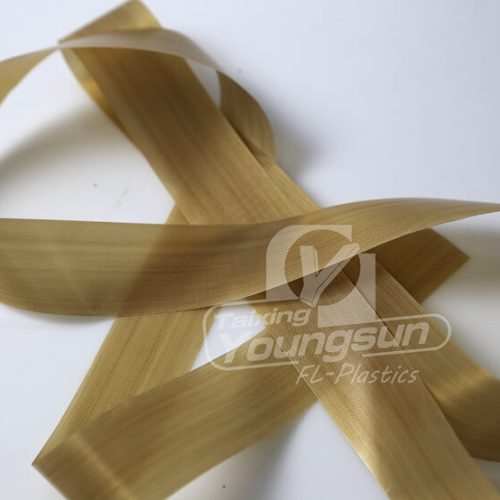

| YS9006P-ESONE | 1000, 1250, 1500 | 0.06 | 66 | 28 | 160/146 |
| YS9010P-ESONE | 1000, 1250, 1500 | 0.10 | 140 | 24 | 240/200 |
| YS9020P-1 -ESONE | 1000, 1250, 1500 | 0.20 | 260 | 23 | 500/480 |
| YS9020P-2 -ESONE | 1000, 1250, 1500 | 0.20 | 350 | 43 | 460/430 |
| YS9020P-3 -ESONE | 1000, 1500, 2600 | 0.20 | 320 | 37.5 | 460/430 |

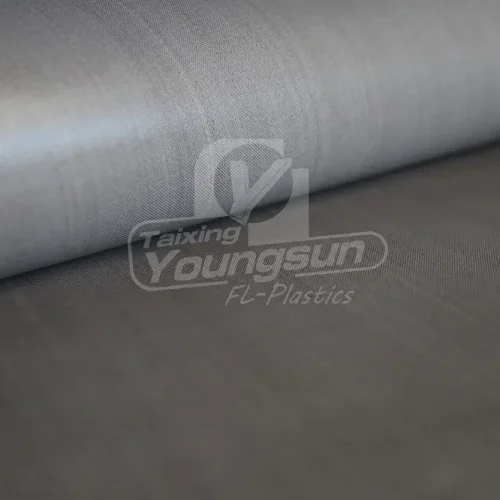

| YS9023P-ESONE | 1000, 1500, 2600 | 0.23 | 278 | 26 | 460/430 |
| YS9025P-ESONE | 1000, 1500, 2600 | 0.25 | 370 | 32 | 520/492 |
| YS9040P-ESONE | 1000, 1250, 1500 | 0.40 | 650 | 35 | 750/580 |
