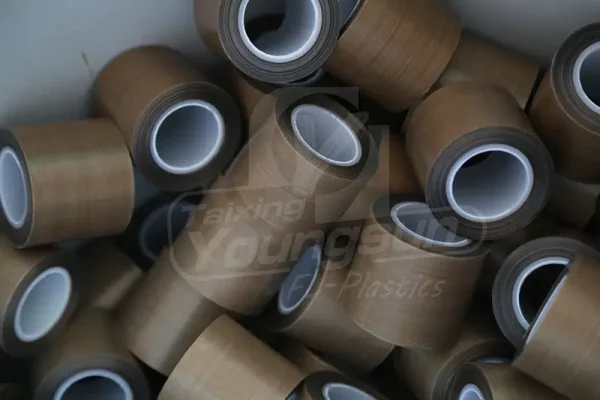

PTFE Teflon Adhesive Tape YS7011A

PTFE Teflon Adhesive Tape YS7011A

PTFE Teflon Adhesive Tape is using PTFE coated fiberglass fabric as basic material, and coated with Silicone pressure adhesive on the back, after chemical treated PTFE fabric.

Since there is two more process of making PTFE adhesive than PTFE fabric, so the quality of PTFE adhesive, is not only matter the material quality, but also the chemical treating process and coating process.


PTFE Teflon Adhesive Tape YS7011A, made with one time coating 0.11mm PTFE fabric

Silicone pressure adhesive tape contain non stick PTFE surface and heat resistant adhesive that allow for easy release, superior mechanical strength, long lifetime and dimensional stability.

PTFE Teflon Adhesive Tape with silicone PSA is the best solution for application which has requirement for continuous and efficient processing, excellent bonding strength and long lasting performance at high temperatures (up to 500˚F / 260˚C).

Properties of PTFE Adhesive Tape YS7011A

Outstanding temperature resistance (continuous working from -70°C to +260°C)
Perfect solution for tough environment transportation
Has strong dielectric strength
Good mechanical strength, Excellent dimensional stability and durability in heat.
High chemical resistant
Superior non-stick surface, easy to release and clean
Offering long lasting easy release property
Resistance to UV
Resistance to HF and RF

Specifications of PTFE Teflon Adhesive Tape YS7011A

ProductProduct CategoryCoating
Standard width
Please ask for other widths
1000, 1250 mm39.5, 49.3 inches
Backing Thickness
PTFE glass
0.11 mm0.0043 inches
Total Thickness
PTFE glass and adhesive
0.16 mm0.0063 inches
Baking weight
PTFE glass
210 g/m²6.2 oz/yd²
Tensile Stength
PTFE glass
240 N/cm Warp137 lbs/inches Warp
200 N/cm Fill114 lbs/inches Fill
Adhesion5.4 N/cm49 oz/inches
Temperature resistance-73 to +260 °C-100 to +500 °F

Color available: Dark brown, Light brown, Black, White

For samples of PTFE Teflon Adhesive Tape,  please feel free to contact us.
