Description

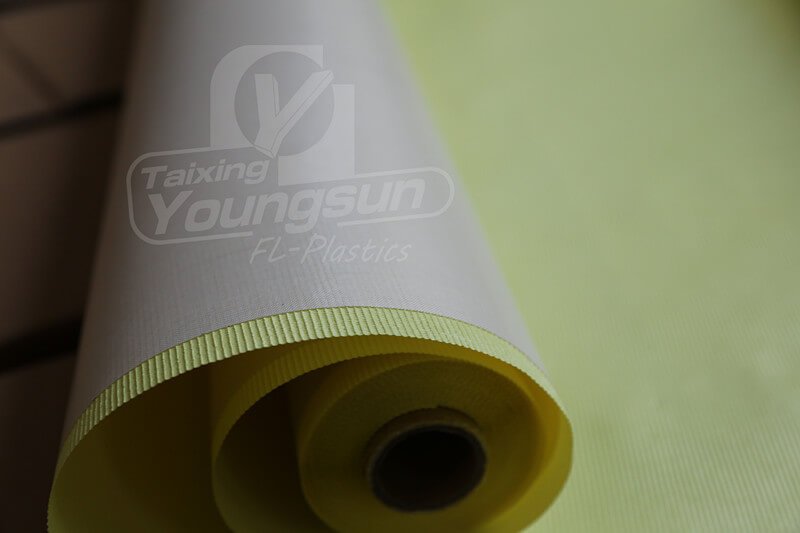

Teflon tape adhesive YS7010W is using PTFE fabric industrial series as basic material, and coated with silicone pressure adhesive. This tape has good release surface and cost-effective property, widely used in Packaging, polybag sealing, wire and cable insulation, LCD/FPCB/PCB bonding release, laminating of PVC window and so on.
Teflon tape adhesive YS7010W, has easy release surface and cost-effective property.
Teflon tape adhesive YS7010W is using PTFE fabric industrial series as basic material, and coated with silicone pressure adhesive. This tape has good release surface and cost-effective property, widely used in Packaging, polybag sealing, wire and cable insulation, LCD/FPCB/PCB bonding release, laminating of PVC window and so on.
Composition of Teflon tape adhesive
- PTFE coated tape can be made into many colors, like Dark brown, light brown, green, red, blue and so on.
- This will not affect the quality of PTFE coated fabric. Color is used to distinguish PTFE fabric.
Advantages of PTFE adhesive tape industrial series
- Packaging and food processing industry has a big quantity demand for the PTFE adhesive tape, and since the working temperature is not high, the working environment is not tough, so the request for the PTFE adhesive tape is not high.
- In this case, we offer PTFE industrial adhesive tape for different industry. This tape will offer good property and reasonable cost.
Properties of YS7010W
Has strong dielectric strength
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Good mechanical strength, Excellent dimensional stability and durability in heat.
Composition of Teflon tape adhesive
Cost effective
High chemical resistant
Superior non-stick surface, easy to release and clean
Offering long lasting easy release property
Resistance to UV
Resistance to HF and RF
Specifications of Teflon tape adhesive YS7010W
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC SELF ADHESIVE | INDUSTRIAL SERIES | SILICONE PSA |
| Properties | Metric | Imperial |
|---|---|---|
| Color | White | White |
| Standard width Please ask for other widths | 1000, 1250 mm | 39.5, 49.3 inches |
| Backing Thickness PTFE glass | 0.10 mm | 0.0039 inches |
| Total Thickness PTFE glass and adhesive | 0.15 mm | 0.0049 inches |
| Baking weight PTFE glass | 200 g/m² | 5.9 oz/yd² |
| Tensile Stength PTFE glass | 240 N/cm Warp | 137 lbs/inches Warp |
| 200 N/cm Fill | 114 lbs/inches Fill | |
| Color | Black | Black |
| Adhesion | 5.4 N/cm | 49 oz/inches |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
