Introduction

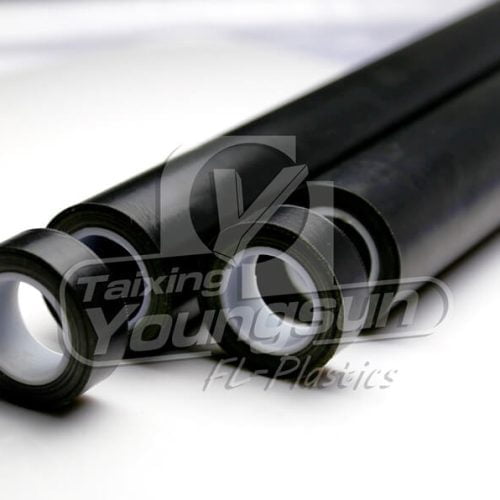

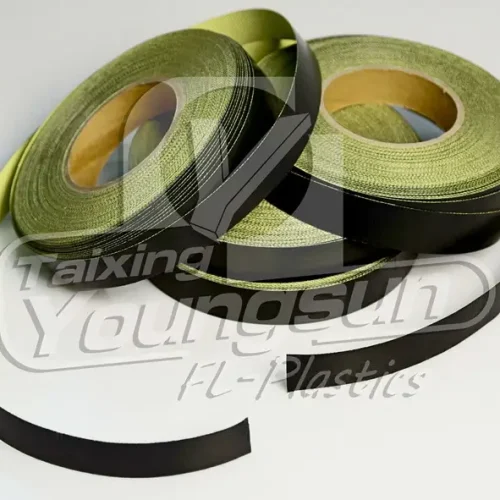

PTFE Adhesive Fabric Anti static Series is coated with high quality silicone pressure sensitive adhesive on one side, can work continuously under 260°C(500°F), yellow textured PVC release liner is applied to the adhesive surface for ease of application.
The basic PTFE fabric is belongs to anti-static series, which is coated with specially formulated black PTFE, these fabrics can eliminate static electricity during operation
Specification of PTFE Adhesive Fabric Anti static Series
PTFE Fabric Premium Series | ||||||
---|---|---|---|---|---|---|
Style | Standard Width(mm) Please ask for other widths | Baking Thickness (mm) | Total Thickness (mm) | Backing Weight (g/m2) | Adhesion (N/cm) | Tensile Strength Warp/Fill (N/cm) |
YS7008BJ-ESONE | 1000/1250 | 0.08 | 0.13 | 155 | 4.4 | 104/98 |
YS7011BJ-ESONE | 1000/1250 | 0.11 | 0.16 | 220 | 5.4 | 240/200 |
YS7012BJ-ESONE | 1000/1250 | 0.12 | 0.17 | 250 | 5.4 | 235/215 |
YS7013BJ-ESONE | 1000/1250/1500 | 0.13 | 0.18 | 270 | 5.4 | 240/200 |
YS7018BJ-ESONE | 1000/1250/1500 | 0.18 | 0.23 | 370 | 5.6 | 320/302 |
YS7023BJ-ESONE | 1000/1250/1500 | 0.23 | 0.28 | 500 | 5.8 | 420/360 |
YS7025BJ-ESONE | 1000/1250/1500 | 0.25 | 0.30 | 530 | 6.0 | 460/400 |
Properties of PTFE Adhesive Fabric Anti static Series
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/ELEC.jpg)
Has strong dielectric strength
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/cold-and-heat.jpg)
Outstanding temperature resistance (continuous working from -70°C to +260°C)
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/environment.jpg)
Perfect solution for tough environment transportation
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/MECHA-.jpg)
Good mechanical strength, Excellent dimensional stability and durability in heat.
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/CHEMICAL.jpg)
High chemical resistant
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/Non-stick.jpg)
Superior non-stick surface, easy to release and clean
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/Long-life-time.jpg)
Offering long lasting easy release property
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/uv-resistance.jpg)
Resistance to UV
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/resist-RF-HF.jpg)
Resistance to HF and RF
