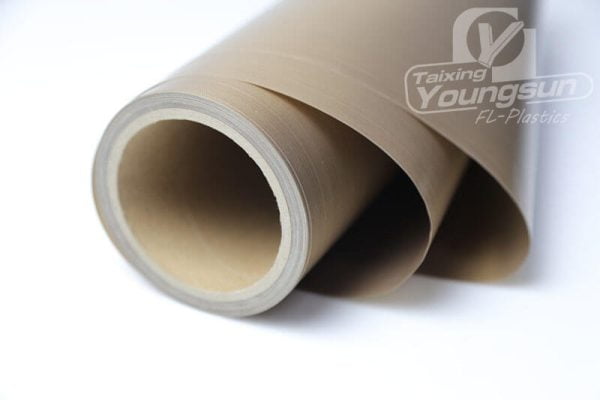

PTFE high temp cloth YS9030AJ

PTFE high temp cloth YS9030AJ

  • Compression molding is an economical and effective way to process high strength and lightweight composite materials.
  • ESONE PTFE high temperature cloth is a heat-resistant release sheet and strip for compression molding. It is used as a processing aid in gluing, converting and forming materials into composite parts.

Description

PTFE high temp cloth, sheet and belt for compression moulding

  • Compression molding is a cost-effective method for producing high-strength, lightweight composite materials.
  • ESONE’s PTFE high-temperature cloth serves as a heat-resistant release sheet and release belt in compression molding, facilitating the bonding, conversion, and shaping of materials into composite parts.
  • ESONE’s non-stick PTFE release sheets and release belts are highly customizable, with the ability to be tailored to fit any machine size. Our belts offer various joint types or guidable edges, while the surface of ESONE release sheets or belts can be smooth, textured, or have one side smooth and one side textured for optimal performance.

Properties of PTFE high temp cloth YS9030AJ

Strong tensile strength and dimensional stability
High chemical resistant
High dielectric strength
Continuous working from -70°C to +260°C
UV resistant
Reusable and has long lifetime
Anti-environment
Easy to release, super Non stick,Low friction and very smooth
Non-toxic and compliant for food applications, FDA & LFGB certificated

Applications of PTFE high temp cloth YS9030AJ

What can be made by ESONE release sheet?

  • Car flooring
  • Dashboard
  • Door panel
  • Head liner
  • Trunk trim
  • Parcel shelves
  • Wheel house
  • covers

Why ESONE PTFE coated fabric is the best solution for compression molding

  • During the process of compression molding, heat and high pressure is applied to the reinforced material and resins, they will be bonded into composite material for the further shaping, curing, cooling and other processing.
  • ESONE excellent non stick PTFE high temp cloth YS9030AJ allows for easy release from mould in the continuous operation. This easy and long lasting release eliminates the need of using release agent, and maximize the production capacity.
  • And due to the high mechanical strength and dimensional stability of ESONE Teflon fabric, ESONE’s release belt will ensure the high quality of finished composite even in a high temperature and pressure working environment.

Technical Data of PTFE high temp cloth YS9030AJ

PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2000, 2600mm39.5, 59.1, 78.8, 102.4 inches
Thickness0.30 mm0.0118 inches
Coated weight625 g/m²18.43 oz/yd²
PTFE content53 %53 %
Tensile strength680 N/cm Warp389 lbs/inches Warp
640 N/cm Fill366 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F

Click here to download the spec of YS9030AJ-ESONE

Contact us for more information and get samples!
