PTFE cloth YS9004AJ, thinnest fabric in premium series

PTFE cloth YS9004AJ, thinnest fabric in premium series

  • PTFE fabric YS9004AJ is the thinnest fabric in the Premium collection,

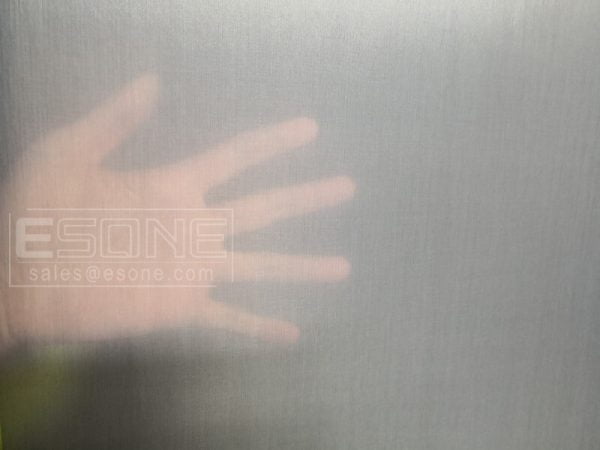

  • Since the basic fiberglass is almost transparent and light as a feather, the coating process is more difficult, and the final 0.04mm PTFE fabric is also almost transparent because you can see the other side through the Teflon fabric.


PTFE cloth YS9004AJ, thinnest fabric in premium series

  • ESONE’s premium series includes the thinnest PTFE cloth available, YS9004AJ. The manufacturing process is challenging due to the lightweight, near-transparency of the underlying fiberglass material. As a result, the final 0.04mm PTFE fabric is also almost transparent, allowing for visibility through the Teflon material.
  • In applications where high-quality Teflon fabric is required, using thinner PTFE fabric can yield better results. However, manufacturing thin PTFE fabric can be difficult, as the underlying fabric is susceptible to damage during the coating process.
  • To meet the demands of customers seeking durable, yet thin Teflon-coated cloth, ESONE utilizes a specialized coating process and formula.
  • ESONE premium series PTFE cloth has following properties.
PTFE cloth YS9004AJ, thinnest fabric in premium series

Properties of PTFE cloth YS9004AJ, thinnest fabric in premium series

Strong tensile strength and dimensional stability
High chemical resistant
High dielectric strength
Continuous working from -70°C to +260°C
UV resistant
Reusable and has long lifetime
Easy to release, super Non stick,Low friction and very smooth
Non-toxic and compliant for food applications, FDA & LFGB certificated

Aapplication of PTFE Cloth YS9004AJ

Mold release sheet

  • ESONE’s PTFE coated fabric is highly sought after in various industries, including aerospace, packaging, and pharmaceuticals, due to the superior properties of PTFE fabric. This material serves as an ideal mold release sheet.
  • YS9004AJ, with its lightweight and excellent surface, is an exceptional release solution for precision components.
  • By reducing the PTFE content while maintaining the same fiberglass, this material can be utilized as a porous fabric during the curing and heat-pressing process of composite materials. It is particularly useful in vacuum bagging systems and similar applications.


  • ESONE’s PTFE cloth YS9004AJ is a versatile material widely used in the electronics industry for various applications such as Copper Clad Laminate (CCL) manufacturing, Flexible Printed Circuit Board (FPCB) manufacturing, LCD conductive film bonding, cable wrapping, and more.
  • The product’s exceptional dielectric strength, easy release surface, outstanding dimensional stability, durability in heat, flame resistance, and mechanical strength make it an optimal choice for electromagnetic solenoids that require high-performance and long-lasting solutions.

Specification of PTFE cloth YS9004AJ

ProductProduct CategoryCoating
Standard width
Please ask for other widths
1000, 1250 mm39.5, 49.3 inches
Thickness0.04 mm0.0015 inches
Coated weight80 g/m²2.36 oz/yd²
PTFE content69 %69 %
Tensile strength60 N/cm Warp34.3 lbs/inches Warp
52 N/cm Fill29.7 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F

Click here to download the spec of YS9004AJ-ESONE

Find more PTFE coated fabric premium series

Contact us for more information and get samples!
