PTFE Fiberglass YS9013AJ

PTFE Fiberglass YS9013AJ

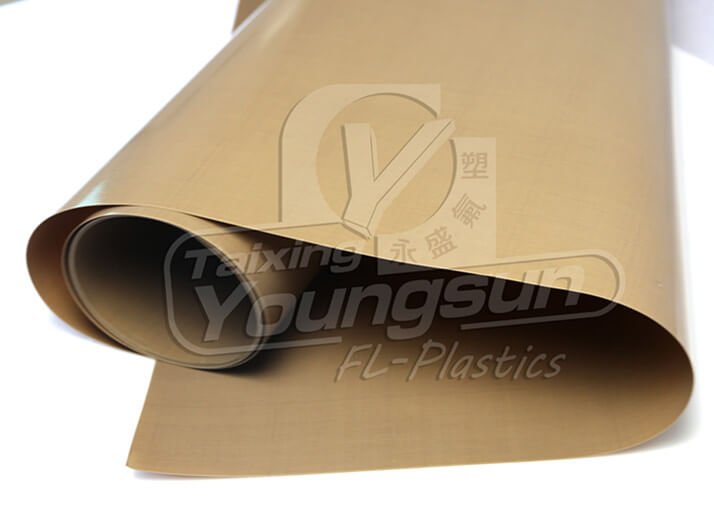

PTFE glass fiber is known as PTFE coated glass fiber fabric, the basic material is premium E-Glass, impregnated with high performance PTFE content to produce a high gloss, extremely smooth coating.


PTFE Fiberglass YS9013AJ, high glossy and easy release

  • PTFE Fiberglass, also known as PTFE-coated fiberglass fabric, is composed of high-quality E-Glass material impregnated with high-performance PTFE content, delivering a high-gloss, ultra-smooth coating.
  • To ensure the highest quality and premier series PTFE Fiberglass, Youngsun incorporates specialized, reliable materials to modify PTFE properties.

Choosing high quality E-Glass for PTFE Fiberglass Premier Series

1 Woven fiberglass delivers excellent mechanical strength to PTFE Fiberglass, including tensile strength in both the fill and warp directions, as well as tear strength. This directly impacts the lifespan, particularly in harsh working environments characterized by high temperatures and strong pressure.

2 High-quality fiberglass prevents Teflon Fiberglass from breaking, falling apart, tearing, and more.

3 The quality of the fiberglass surface directly impacts the surface of PTFE glass fiber. High-quality fiberglass yields a super-smooth surface for PTFE-coated fiberglass.

Coating high quality PTFE for PTFE Fiberglass Premier Series

1 High-quality PTFE tightly bonds with fiberglass, even after multiple laminations, ensuring it never peels from the fiberglass.

2 Imported PTFE brands, such as Daikin and Dupont, are PFOA-free and safe for direct food contact, making them ideal for use in food belting, non-stick oven or baking liners, and non-stick BBQ mats, among other applications.

3 High-quality PTFE yields an excellent smooth surface, devoid of defects such as cracking or drooping, and reduces surface pinholes, facilitating easy release during processing.

Properties of PTFE Fiberglass

UV resistant
High chemical resistant
High dielectric strength
Reusable and has long lifetime
Strong tensile strength and dimensional stability
Continuous working from -70°C to +260°C
Easy to release, super Non stick,Low friction and very smooth
Non-toxic and compliant for food applications, FDA & LFGB certificated

Technical Data of Teflon coated Fiberglass Fabric

ProductProduct CategoryCoating


Standard width
Please ask for other widths
1000, 1250, 1500 mm39.5, 49.3, 59.1 inches
Thickness0.13 mm0.0051 inches
Coated weight270 g/m²7.96 oz/yd²
PTFE content60 %60 %
Tensile strength240 N/cm Warp137 lbs/inches Warp
200 N/cm Fill114 lbs/inches Fill
Temperature resistance-73 to +260 °C-100 to +500 °F


Click here to download Spec of YS9013AJ-ESONE


For samples of PTFE Fiberglass,  please feel free to contact us.

Weight Tolerance g/m² = ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
