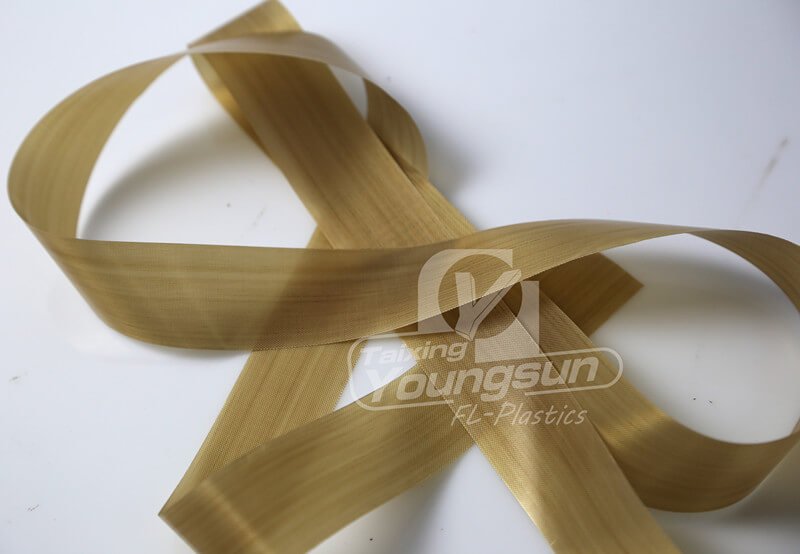

Porous PTFE/Teflon Sheet YS9006, Prelease sheet that can allow air circulation
- Porous PTFE Sheet has a higher porosity than most Teflon coated fabrics, and this fabric combines fiberglass with lower content of PTFE coating.
- This Porous PTFE fabric is used in applications which need airflow pass throw the fabric under pressure (air circulation for drying and curing processes), normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding in the manufacturing of composite aircraft components.
- Unlike PTFE premium series, it is more flexible, much stronger and can be wrapped around curved shapes.
Advantage of Porous PTFE/Teflon Sheet YS9006
Application of Porous PTFE/Teflon Sheet
Aerospace, Communications, Milltary
Insulation and protection
PTFE fabric for composite aircraft components
Drying painted or lacquered products
Release sheet for heat sealing machines
Specifications of YS9006
|PTFE GLASS FABRIC||POROUS SERIES||PTFE|
Please ask for other widths
|1000 mm||39.5 inches|
|Thickness||0.06 mm||0.0024 inches|
|Coated weight||66 g/m²||1.95 oz/yd²|
|PTFE content||27 %||27 %|
|Porosity||20-100 cfm||20-100 cfm|
|Tensile strength||160 N/cm Warp||91.5 lbs/inches Warp|
|146 N/cm Fill||83.5 lbs/inches Warp|
|Temperature resistance||-73 to +260 °C||-100 to +500 °F|
Click here to download technical data sheet of YS9006P-ESONE
