PTFE Mesh Conveyor Belt, long lasting screen printing belt
PTFE Mesh Conveyor Belt, long lasting screen printing belt
PTFE Mesh Conveyor Belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.

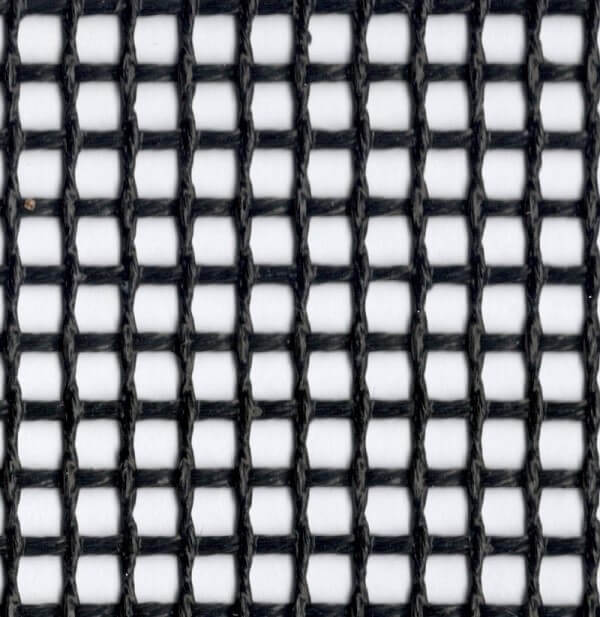

Teflon Belt YS6012 is 4×4 mm double weft mesh fabric, this mesh belt can be anti-static by adding special formula. And due to the construction, this belt has good mechanical strength and is widely used in the market.
Property of PTFE mesh conveyor belt
Has strong dielectric strength Could be Anti-static
Exceptional strength and dimensional stability.
Superior non-stick surface, easy to clean and release
Food grade, can touch food directly
Operating temperature range from -70 to 260 degrees
Maximum width is 4000mm wide
Any sizes could be made,the maximum width is 4000mm wide
Controlled porosity
different mesh size from 1mm to 10mm could be made
Resistance to HF and RF
Resistance to UV
High chemical resistant
Light weight, easy to install
Technical Data Sheet of PTFE mesh conveyor belt YS6012
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | OPEN MESH SERIE | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000 mm | 39.5, 59, 67, 81,98.4, 106, 126, 134,142, 150, 158 inches |
| Mesh Size | 4 x 4 mm | 0.1574 x 0.1574 inches |
| Weight | 580 g/m² | 17.1 oz/yd² |
| Weft | Double weft | Double weft |
| Tensile Strength | 360 N/cm Warp | 206 lbs/inches Warp |
| 500 N/cm Fill | 286 lbs/inches Fill | |
| Color | Black | Black |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
- For samples of PTFE Mesh Conveyor Belt, please feel free to contact us.
- Other specification is also available, you can contact us for more information.
Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different splices & joint & edge reinforcement
- ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.
- Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
| PTFE Mesh Belt | |||
|---|---|---|---|
| Belt Material | PTFE glass fabric | PTFE Kevlar fabric | |
| Belt Joint | Bullnose | Alligator | Plastic |
| Belt Edge | PTFE glass edge | PTFE film edge | PTFE Kevlar edge |
| Belt Guide | PTFE guide | Kevlar guide | Silicone guide |
| Belt Pin | Stainless Steel Pin | PTFE Pin | Alligator Pin |
Contact us for more information and get samples！
