Heat resistant mesh belt YS6008S

Heat resistant mesh belt YS6008S

Heat resistant mesh belt YS6008S is using stronger fiberglass yarn for weaving, the tensile strength and lifetime is better than standard mesh series. The main applications is screen printing, drying, packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.
4 x 4 mm PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.

Category:

Description

Heat resistant mesh belt YS6008S

Heat resistant mesh belt YS6008S

Heat resistant mesh belt YS6008S is using stronger fiberglass yarn for weaving, the tensile strength and lifetime is better than standard mesh series. The main applications is screen printing, drying, packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.
4 x 4 mm PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.

Specification of Heat resistant mesh belt

Extra strong mechanical strength
can be used in direct contact with food.
Longer lifetime
Excellent belting material

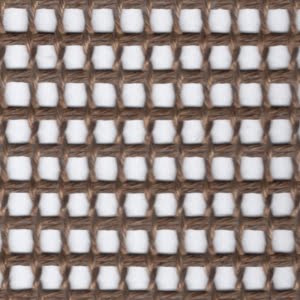

PTFE mesh with stronger fiberglass yarn YS6008S

PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1400, 2500, 2600,2700, 3300, 3400, 3700,3800, 4000 mm39.5, 55, 98.4, 102,106, 130,
134, 146,150,
158 inches
Mesh Size4 x 4 mm0.1575 x 0.1575 inches
Weight720 g/m²21.2 oz/yd²
FiberglassStronger FiberglassStronger Fiberglass
Tensile Strength405 N/cm Warp231 lbs/inches Warp
640 N/cm Fill366 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F

Click here to download the spec of YS6008S-ESONE

Click here to access PTFE mesh series

PTFE mesh with standard fiberglass yarn YS6008

PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000 mm39.5, 59, 67, 81,98.4, 106, 126, 134,142, 150, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight580 g/m²17.1 oz/yd²
WeftDouble weftDouble weft
Tensile Strength360 N/cm Warp206 lbs/inches Warp
500 N/cm Fill286 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F





Click here to download the spec of YS6008-ESONE

Click here to access PTFE mesh YS6008

Application of PTFE mesh conveyor belt with Heat resistant mesh belt YS6008S

PTFE heavy mesh belt for Coir mat & Coconut palm mattress manufacturing

Coir Mat ( or palm mattress) is using coconut palm from natural palm tree, and add lots of adhesive or glue during the manufacturing.

PTFE mesh conveyor belt is used to convey coir mat through oven for heating and curing.

The reason why using PTFE mesh with stronger fiberglass

  • PTFE mesh must be strong in order to carry heavy coir mat
  • PTFE mesh must have long lifetime for increasing the output of production

Heat resistant mesh belt for non woven manufacturing

  • The heat resistant and non stick PTFE coated belt, is the critical feature of the thermal bonding process of non woven manufacturing.

During the drying process, the cotton with or without glue, the fiber with low melting point need to be dried and cured, then a PTFE mesh belt or PTFE heavy duty belt will be needed.

Drying belt with high mechanical strength

  • Drying belt is the most common applications for PTFE heavy mesh belt.
  • Teflon open mesh belt can be easily found in food packaging, seafood processing, screen printing, pets food manufacturing, non woven manufacturing and many other applications
  • And Teflon open mesh belt which using strong fiberglass yarn has stronger mechanical strength and longer lasting property.

Contact us for more information and get samples!
