Description

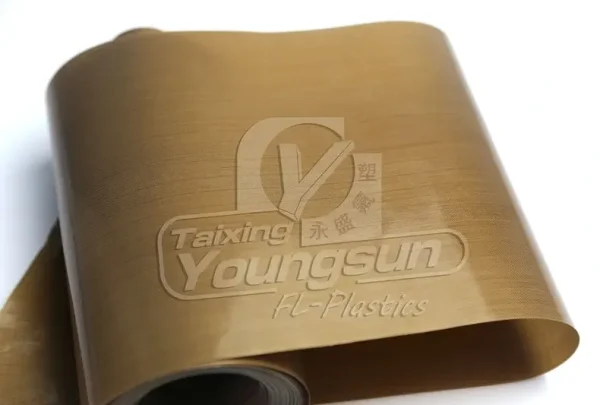

PTFE Glass Fabric YS9011AJ, with medium PTFE coating for cost effective property
PTFE Glass Fabric combines the excellent mechanical properties of woven fiberglass fabric with the easy release property of Teflon(PTFE)(Polytetrafluoroethylene). The woven pattern of glassfiber fabric ensures the tensile strength and tear strength, while PTFE coating guarantees its non stick(easy release), chemical & UV & heat resistant characteristics.
Industrial Series PTFE fiberglass cloth is also made of E-glass fiber, but is coated with medium level of PTFE content. This series fabric offering a good release property and cost effective price.
The popular specification of Industrial PTFE fabric is YS9011AJ, the thickness is 0.11mm, and the weight is 220g/m2.
YS9011AJ could be coated for one more time, which will result in YS9013AJ Premium series(with high PTFE content).
Property of PTFE Glass Fabric YS9011AJ
Strong tensile strength and dimensional stability
High chemical resistant
Reusable and has long lifetime
High dielectric strength
Continuous working from -70°C to +260°C
Resistance to UVs
Resistance to IRs and HF
Resistance to microwaves
Anti-environment
Easy to release, super Non stick，Low friction and very smooth
Non-toxic and compliant for food applications, FDA & LFGB certificated
PTFE Glass Fabric YS9011AJ
- YS9011AJ is selling a lot into heat sealing, heat insulation, release sheet for heat press machines, non stick sheets for laminating, woven or non woven textile lamination, release fabric or tape for plastic bag manufacturing & bag sealing, non stick baking sheet or tray liners etc.
- It can be cut into any width and any length, according to the needs of the equipment. The normal color is light brown or dark brown, and it can be coated with silicone PSA or acrylic adhesive on the back.
Technical Data of PTFE Glass Fabric YS9011AJ
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | INDUSTRIAL SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1250 mm | 39.5, 49.3 inches |
| Thickness | 0.11 mm | 0.0043 inches |
| Coated weight | 220 g/m² | 6.49 oz/yd² |
| PTFE content | 48 % | 48 % |
| Tensile strength | 220 N/cm Warp | 126 lbs/inches Warp |
| 180 N/cm Fill | 103 lbs/inches Fill | |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download the TDS of YS9011AJ-ESONE
Click here to access more spec of PTFE coated glass fabric
