Description

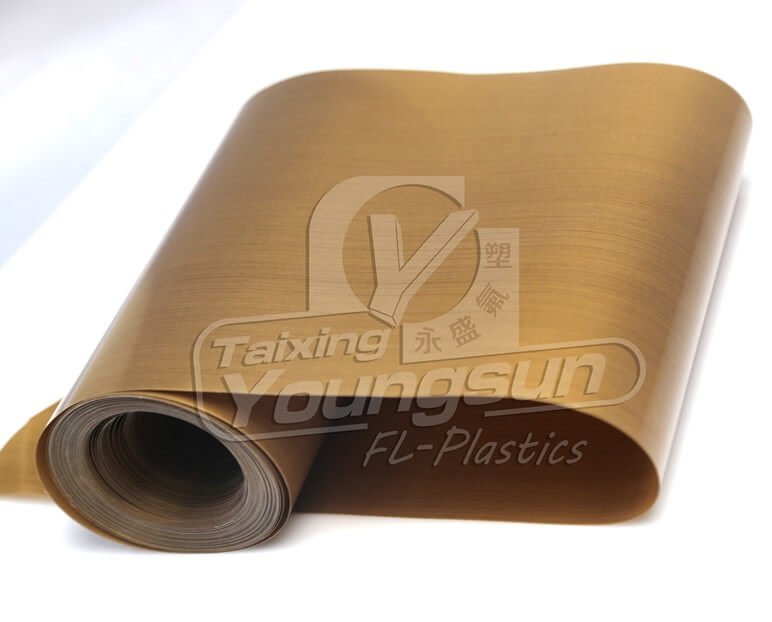

PTFE Glass Cloth Tear Resistant, increased tear and crease strength property.
- PTFE Glass Cloth Tear Resistant, by coating with specially formulated material, and using special fiberglass with high mechanical strength, which highly improved the tensile strength and tear strength.
- This Tear resistant fabric is designed for aerospace industry, packaging industry, food processing industry, Tortilla production industry, PVC door & window welding industry and so on. In order for generating longer lifetime than normal PTFE coated cloth.
Why use Tear Resistant PTFE Glass Cloth
- Teflon Tear Resistant Cloth is produced for applications in tough working environment, like continuous high pressure and high temperature, or used for minimize the downtime of machines, ensure the quality of processed product.
- PTFE Glass Cloth Tear Resistant is typically used in applications requiring high-flex properties or belting applications with small diameter pulleys.
- For aerospace industry, PTFE Tear Resistant Cloth is used to resist the high pressure during curing and laminating, also offers the non stick surface. Due to the high mechanical strength of this release fabric, the mold release tape can be reused many times.
- PTFE bleeder cloth (Porous PTFE fabric) is also specially formulated in order for increasing the tensile strength.
Properties of Tear Resistant PTFE Glass Cloth
Superior non-stick surface, easy to release and clean
Non-toxic and compliant for food applications, FDA & LFGB certificated
Excellent dimensional stability, strong tensile strength and tear strength with great flexibility
High electrical insulating power, strong resistance to electric arc
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Environment Resistant
High chemical resistant
Resistance to microwaves
Resistance to UV
Resistance to HF and RF
Applications of Tear Resistant PTFE Glass Cloth YS9008AT
PTFE Mold release tape
- For aerospace industry, PTFE Tear Resistant Cloth is used to resist the high pressure during curing and laminating, also offers the non stick surface. Due to the high mechanical strength of this release fabric, the mold release tape can be reused many times.
- PTFE bleeder cloth (Porous PTFE fabric) is also specially formulated in order for increasing the tensile strength.
PTFE tape for polybag manufacturing
For packaging industry and food processing industry, PTFE Tear Resistant Fabrics with or without adhesive, is designed for increasing the lifetime of release sheet, and guarantee the quality of the processed product.
PTFE tortilla belt
For Tortilla production, in order to resist the continuous pressure, high temperature and oil leaking, PTFE fabric will be requested to have an abrasion resistant, tear resistant property, and a smooth surface without pin holes.
Specifications of PTFE Tear Resistant Fabric
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | TEAR RESISTANT SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000 mm | 39.5 inches |
| Thickness | 0.075 mm | 0.0030 inches |
| Coated weight | 135 g/m² | 4 oz/yd² |
| PTFE content | 64 % | 64 % |
| Tensile strength | 190 N/cm Warp | 109 lbs/inches Warp |
| 180 N/cm Fill | 103 lbs/inches Fill | |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download the TDS of YS9008AT-ESONE
Specifications of PTFE Tear Resistant Fabric
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | TEAR RESISTANT SERIES | PTFE |
| PTFE Fabric Tear Resistant Series | |||||
|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Normal Thickness (mm) | Weight (g/m2) | PTFE Content (%) | Tensile Strength Warp/Fill (N/cm) |
| YS9008AT-ESONE | 1000 | 0.075 | 135 | 64 | 190/180 |
| YS9011AT-ESONE | 1000 | 0.115 | 235 | 54 | 240/230 |
| YS9014AT-ESONE | 1000, 1250, 1500 | 0.14 | 255 | 57 | 360/330 |
| YS9015AT-ESONE | 1000 | 0.15 | 295 | 63 | 360/330 |
| YS9023AT-ESONE | 1000 | 0.23 | 490 | 59 | 560/540 |
Anti static (conductive) PTFE tear resistant Fabric is also available.
