Description

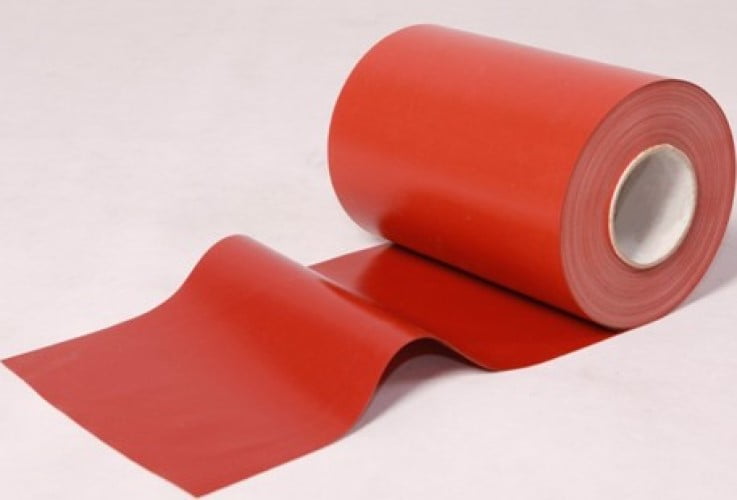

17.5 oz Silicone coated Glass Cloth, high performance coated fabric for insulation industry
- Silicone coated Glass Cloth, manufactured by Taixing Youngsun FL-Plastics Co.,Ltd, has high performance property and cost-effective price. Our advanced silicone coated fabric is used in many different applications, such as insulation jacket, welding curtains, expansion joint, equipment cover and so on.
- ESONE silicone coated fiberglass fabric can be fabricated, die-cut, easy to sewn and provide good performance.
Properties of High temp Teflon tape YS7008AJ
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Perfect solution for tough environment transportation
Has strong dielectric strength
Abrasion resistant
Abrasion resistant
High chemical resistant
Offering long lasting easy release property
Resistance to UV
Resistance to HF and RF
By using a specially formulated dry or wet silicone rubber, and specialized weaved fiberglass fabric, ESONE silicone coated fabric and textile can not only offer superior heat protection, but also has exceptional durability and high resistance to abrasion and chemicals.
★ Flexible for ease of use in pad fabrication
★ Available in a variety of thicknesses and colors
Applications of 34 oz Silicone coated fiberglass cloth
- Industrial applications of ESONE silicone/PTFE coating fabrics and textiles, including thermal insulation jackets, welding curtain, expansion joint, flame resistant curtains and so on.
- Most of our standard Silicone coated fiberglass cloth is used in industries such as welding, insulation, aerospace, automotive and petrochemical. And our engineer will adjust the formula, or using special fabric like Kevlar®, Nomex®, Nylon, Carbon, aramid blends, in order to meet the request of customer in different industries.
Silicone fabric Expansion joint
Insulation jacket
Shrink tunnels curtain
It is the perfect solution for industry like following：
★ Removable insulation blanket
★ Welding curtains
★ Expansion joints
★ fire protection curtains
★ anti-corrosion sector
★ Equipment covers
★ Safety clothing
★ Shrink tunnels
★ Foam manufacturing
Specifications of 17.5 oz Silicone coated Glass Cloth
| Product | Product Category | Coating |
|---|---|---|
| SILICONE RUBBER COATED GLASS FABRIC | SILICONE BOTH SIDE | SILICONE RUBBER |
| 17.5 oz Silicone Impregnated Fiberglass Fabric YS5045 | ||
|---|---|---|
| Properties | Metric | Imperial |
| Basic Fabric | Satin weaved fiberglass | Satin weaved fiberglass |
| Coating | Both side | Both side |
| Standard width Please ask for other widths | 1500 mm | 60 inches |
| Coated Weight | 595 g/m² | 17.5 oz/yd² |
| Thickness | 0.457 mm | 0.018 inches |
| Tensile strength | Warp 2679 N/5cm | 300 lbs/inches |
| Fill 2009 N/5cm | 225 lbs/inches | |
| Mullen Burst | 420 N/cm² | 600 psi |
| Flame Resistant | Char Length 0.159 cm max | Char Length 1/16 inch max |
| Afterglow 1 second max | Afterglow 1 second max | |
| Flame Out 1 second max | Flame Out 1 second max | |
| Temperature resistance | -54°C to +260°C | -67°F to +500°F |
| Tear Strength | 22.68 kg | Warp- 50 lbs |
| 22.68 kg | Fill- 50 lbs | |
| Color | Gray/White/Yellow/Black/Red | Gray/White/Yellow/Black/Red |
Click here to access 17 oz Silicone coated fabrics
Contact us for more information and get samples！
