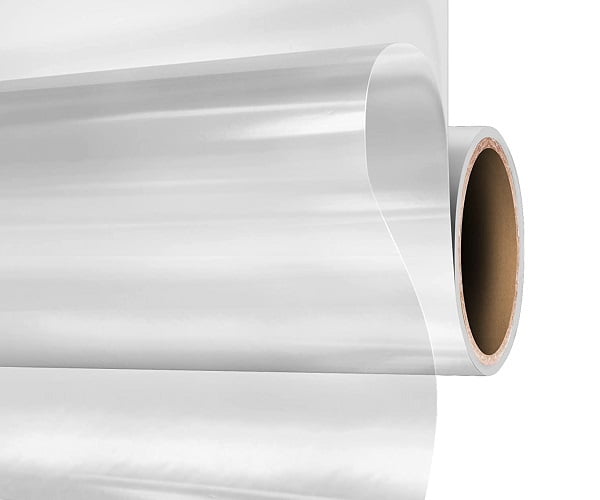

ESONE’s PVDF films are melt extruded casting film manufactured from Polyvinylidene Fluroride resins. PVDF foils has all the properties of fluoropolymer films and it has strong processibility, meanwhile, PVDF membrane can be heat sealed and laminated to many kinds of substrates like PVC, Floor, Color steel tile and Aluminium-plastic panel.
Due to the following properties, PVDF film is widely used in Wallcovering, Solar back protection, Thin-film Cell, outdoor metal film-coated plate and many other applications.
Properties of PVDF Film
UL V-0 rating – international standard, A0-class – China
Perfect solution for tough environment transportation
Outstanding temperature resistanc
Continuously working up to 300°F (150°C)
Excellent dimensional stability, strong tensile strength and tear strength
Superior non-stick surface, easy to release and clean
High chemical resistant
Resistance to UV
Has strong dielectric strength
Low friction property
Resistance to HF and RF
Applications of PVDF Film
Children room wallcovering
Monochromatic or Transparent PVDF films can be laminated with PVC, PET or other substrates, resulting in a non stick & bacteriostatic & ageing-resistant wallcoverings.
The excellent properties including
- Non stick – Easily remove any stains
- Fire resistance – UL V-0 rating – international standard, A0-class – China
- Environmental resistance – Permanently new!
- Bacteriostatic – Not only bacteriostatic, but also not afraid of disinfectant fluid
Now ESONE PVDF wallcovering has been widely used in hospital, since this film is bacteriostatic, easy to clean and can resist to disinfectant fluid. It is normally used in inpatient ward, aisle, hall and other crowded places.
The PVC or PET substrates can be customized into any design that you like! Contact us for offering various choices!
-Steel & PVC & Wood
Color steel tile laminating
PVC membrane laminating
Aluminium plastic panel laminating
Due to the weathering and abrasive resistance, ESONE PVDF films is typically used as the environmental ageing protection for colored steel, alumium sheet or floor.
The special formulated PVDF film has one special side which can laminate these substrates. The lamination process can be heat lamination or chemical lamination.
-Aircraft & High speed train Decoration
ESONE PVDF film for Aircraft & High speed train Decoration is using pure PVDF film to laminate the wall, resulting in a non stick and easy to clean activity space.
Along with the growing needs for disinfection, more and more companies are using PVDF film to cover the wall, floor and ceiling, so that all the space is film covered, clean and safe.
-Solar back protection
ESONE PVDF film for solar back protection is specially formulated for offering 100% UV blocking, excellent vapour blocking and anti-aging property. This film is white color and is one side or both sides corona treated.
Our PVDF film has high adhesive strength to polyurethane glue and EVA adhesive sheet, and it can offer more than 25 years anti-aging services. Moreover, it is widely used as the surface protective film for metal sheet, outdoor advertising box and others.
Technical Data Sheet of PVDF Film
ESONE offering PVDF films in a various thickness from 0.001” to 0.03” (25 to 760 μm), the maximum width can be 90” (2,280mm).
PVDF Film surface:
Any kinds of surface can be offered for easy lamination, including chemical etching, corona treatment.
The standard color including white, transparent and other customized color.
- Plastics: PVC, PET, PP, PETG, PMMA and others
- Wood: Floor, Particle board and others
- Stone: Marble, Tile, Granite, rock beam and others
- Metal: Aluminum plastic board, Aluminum veneer, Color steel plate and others
- Composite material: FRR board, GRC board, Medium density board and others
ESONE offering PVDF films in a various thickness from 0.001” to 0.03” (25 to 760 μm), the maximum width can be 90” (2,280mm). Any kinds of surface can be offered for easy lamination, including chemical etching, corona treatment. And the standard color including white, transparent and other customized color.
