Description
Fusing Machine Belt, used for Hashima, Oshima, Meyer, Veit, Macpi Fusing Machines.
- Fusing Machine Belt is designed for Fusing Press machines, Flat Type Fusing Press machines, Seamless machines, Heat-transfer Press machines and so on.
- It is made of PTFE coated fiberglass fabric, the basic fabric is weaved specially, has no joint and very smooth.
- After weaving, this belt is coated with high quality PTFE, which ensure the super Non-stick surface of this belt.
- Any impurity which will stick to the belt can be removed with ease so that the machines are always clean.
- Teflon Fusion Belt can resist heat up to 260 degrees, and can be made into Anti-static surface to prevent electrostatic. Youngsun’ belt has very good quality and long lifetime.
Properties of Fusing Machine Belt
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/heat-resistant.jpg)
High temperature resistant
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/resist-RF-HF.jpg)
Resistance to HF and RF
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/ELEC.jpg)
Superior Anti-static surface
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/abrasion-resistant.jpg)
Smooth surface, no scar on it
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/uv-resistance.jpg)
Resistance to UV
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/Long-life-time.jpg)
Flex fatigue resistance, durable, long using life
![](https://www.tecidoptfe.com/wp-content/uploads/2023/03/Non-stick.jpg)
Superior non-stick surface, easy to clean and release
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/MECHA-.jpg)
High temperature resistant
![](https://www.tecidoptfe.com/wp-content/uploads/2022/05/CHEMICAL.jpg)
High chemical resistant
What is the size of Fusing Machine Belt?
- Teflon endless belt can be made into any sizes to match the machines.
- For Hashima, like compact fusing press machine HP-450MS, Straight linear fusing press machine HP-600LF & HP-900LF & HP-1000LS, Double presser straight linear fusing press machine HP-1000LW and so on.
- For Macpi, like continuous fusing machine 327.00, 327.10, 331 etc.
Standard Thickness: 14.0~16.0 mil / 0.35~0.40mm | |||||||||
Width: 20~1600mm | |||||||||
Seamless Belt Girth: (mm) | |||||||||
1360 | 1380 | 1440 | 1470 | 1510 | 1520 | 1530 | 1540 | 1550 | 1560 |
1580 | 1600 | 1640 | 1660 | 1680 | 1730 | 1740 | 1780 | 1820 | 1830 |
1840 | 1850 | 1870 | 1880 | 1950 | 2000 | 2040 | 2100 | 2230 | 2240 |
2250 | 2310 | 2320 | 2420 | 2440 | 2450 | 2500 | 2600 | 2630 | 2750 |
2800 | 2820 | 2850 | 2880 | 2900 | 3050 | 3080 | 3090 | 3200 | 3450 |
3540 | 3590 | 3820 | 3850 | 3890 | 3900 | 3920 | 3930 | 4200 | 4270 |
5100 | 5270 | 5400 | 5640 | 5800 | 6000 | 6440 | 6700 |
![](https://www.tecidoptfe.com/wp-content/uploads/2023/04/product0062_01.jpg)

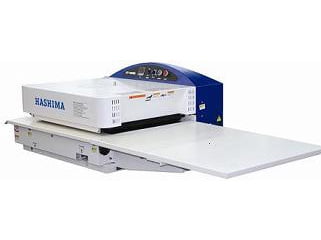

hashima fusing belt
Popular sizes of Oshima Fusing Machine Belt
OP-450GS : 460*1530/1840mm
OP-450GSL: 460*1530/2440mm
OP-520GS : 520*1530/1840mm
OP-520GSL:520*1530/2440mm
Note: we can make the belt according to your required size.
Available length of seamless belt: 1360mm to 6700mm; Max width: 1600mm.
Standard Thickness: 14.0~16.0 mil / 0.35~0.40mm | |||||||||
Width: 20~1600mm | |||||||||
Seamless Belt Girth: (mm) | |||||||||
1360 | 1380 | 1440 | 1470 | 1510 | 1520 | 1530 | 1540 | 1550 | 1560 |
1580 | 1600 | 1640 | 1660 | 1680 | 1730 | 1740 | 1780 | 1820 | 1830 |
1840 | 1850 | 1870 | 1880 | 1950 | 2000 | 2040 | 2100 | 2230 | 2240 |
2250 | 2310 | 2320 | 2420 | 2440 | 2450 | 2500 | 2600 | 2630 | 2750 |
2800 | 2820 | 2850 | 2880 | 2900 | 3050 | 3080 | 3090 | 3200 | 3450 |
3540 | 3590 | 3820 | 3850 | 3890 | 3900 | 3920 | 3930 | 4200 | 4270 |
5100 | 5270 | 5400 | 5640 | 5800 | 6000 | 6440 | 6700 |
Packing of Fusing Machine Belt

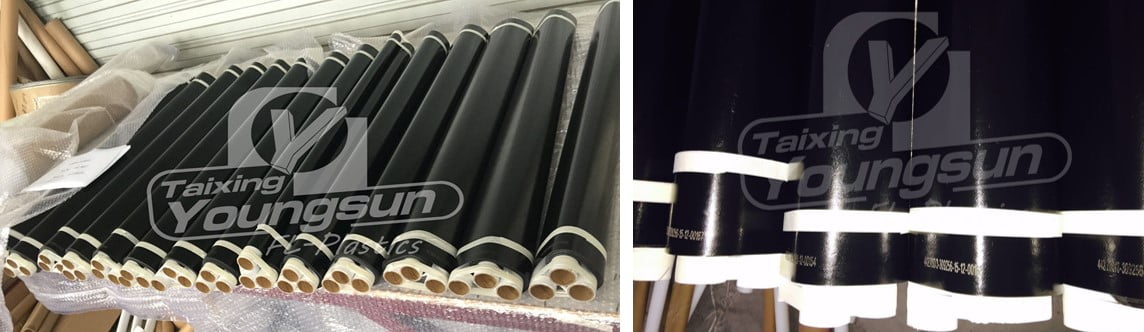

1) Youngsun will mark the date of production onto the belt, and pack the fusing belt orderly and tightly in order for protection.
![](https://www.tecidoptfe.com/wp-content/uploads/2023/04/packaging.jpg)

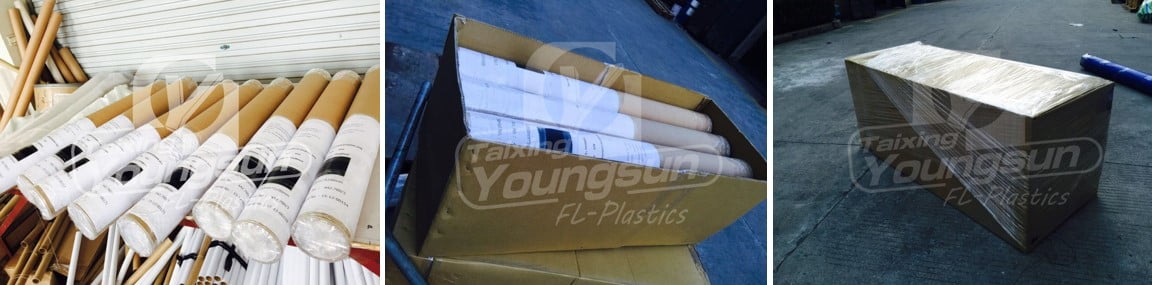

2) Then the fusing belt will be wrapped into the paper tube, packed by export carton and ready for delivery.
![](https://www.tecidoptfe.com/wp-content/uploads/2023/04/packaging2.jpg)
