Teflon mesh fabric YS6030 triple weft

Teflon mesh fabric YS6030 triple weft

Teflon mesh fabric YS6030 is woven by triple weft and triple warp, the tensile strength and lifetime is better than double weft mesh series. It is the excellent long lasting belting material for screen printing, drying, laminated glass manufacturing, packaging industry, non woven manufacturing, wood processing industry and so on, and it is also used as porous architecture membrane material due to the high mechanical strength and high transmission of light.
2 x 2 mm PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.

Category:

Description

Teflon mesh fabric YS6030 is woven by triple weft and triple warp, the tensile strength and lifetime is better than double weft mesh series. It is the excellent long lasting belting material for screen printing, drying, laminated glass manufacturing, packaging industry, non woven manufacturing, wood processing industry and so on, and it is also used as porous architecture membrane material due to the high mechanical strength and high transmission of light.

Silicone Baking Sheet, non-stick solution for your baking life!

Teflon mesh fabric YS6030 is woven by triple weft and triple warp, the tensile strength and lifetime is better than double weft mesh series. It is the excellent long lasting belting material for screen printing, drying, laminated glass manufacturing, packaging industry, non woven manufacturing, wood processing industry and so on, and it is also used as porous architecture membrane material due to the high mechanical strength and high transmission of light.

2 x 2 mm PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.

Specific performance of Teflon mesh fabric

Extra strong mechanical strength
Great for architectural membrane
Various color is available
Excellent belting material

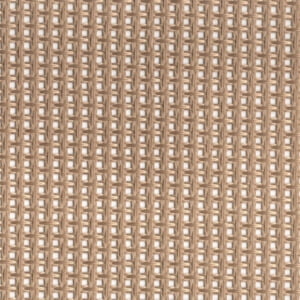

Technical data sheet of YS6030 triple weft

ProductProduct CategoryCoating
PTFE GLASS FABRICSTRONGER FIBERGLASS SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 1700, 2050,2700, 3200, 3400,3600,3800, 4000 mm39.5, 59, 67, 81,106, 126, 134,142,150, 158 inches
Mesh Size2 x 2 mm0.0787 x 0.0787 inches
Weight660 g/m²19.5 oz/yd²
WeftTriple weftTriple weft
WarpTriple warpTriple warp
Tensile Strength680 N/cm Warp389 lbs/inches Warp
620 N/cm Fill354 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F

Click here to access full series of PTFE mesh fabric

Different splices & joint & edge reinforcement

ESONE is not only offering the full range of PTFE open mesh belt, but also providing any kinds of splices & joints & edge reinforcement.

Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!

  PTFE Mesh Belt
Belt MaterialPTFE glass fabricPTFE Kevlar fabric
Belt JointBullnoseAlligatorPlastic
Belt EdgePTFE glass edgePTFE film edgePTFE Kevlar edge
Belt GuidePTFE guideKevlar guideSilicone guide
Belt PinStainless Steel PinPTFE PinAlligator Pin


Contact us for more information and get samples!
