Teflon conveyor belt, long lasting jerky drying belt
Teflon conveyor belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.

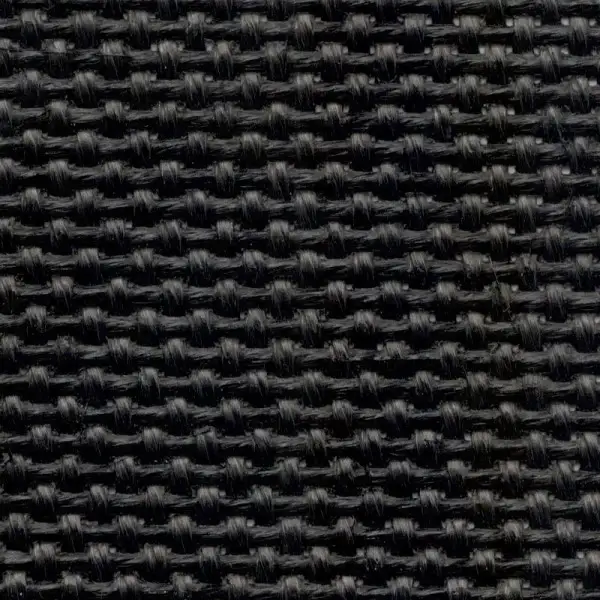

Teflon Belt YS6002 is 1×1 mm black mesh fabric, this mesh belt can be anti-static by adding special formula. And due to the construction, this belt has good mechanical strength and is widely used in the drying industry, such as seafood honeysuckle, oat, cereal products, pet food, jerky and others.
Properties of PTFE mesh conveyor belt
Non-toxic and compliant for food applications, FDA & LFGB certificated
Operating temperature range from -70 to 260 degrees
Superior non-stick surface, easy to clean and release
Has strong dielectric strength Could be Anti-static
Any sizes could be made, the maximum width is 4m
Controlled porosity, different mesh size from 1mm to 10mm could be made
Exceptional strength and dimensional stability.
High chemical resistant
Resistance to HF and RF
Light weight, easy to install
Resistance to UV
Technical Data Sheet of Teflon conveyor belt YS6002
|PTFE GLASS FABRIC||OPEN MESH SERIE||PTFE|
Please ask for other widths
|1000, 1500, 1700, 2050,2500, 2700, 3200, 3400,3600, 3800, 4000 mm||39.5, 59, 67, 81,98.4, 106, 126, 134,142, 150, 158 inches|
|Mesh Size||4 x 4 mm||0.1574 x 0.1574 inches|
|Weight||580 g/m²||17.1 oz/yd²|
|Weft||Double weft||Double weft|
|Tensile Strength||360 N/cm Warp||206 lbs/inches Warp|
|500 N/cm Fill||286 lbs/inches Fill|
|Temperature Resistance||-73 to +260 °C||-100 to +500 °F|
- Click here to access YS6001 with 1x1mm brown color
- For samples of PTFE Mesh Conveyor Belt, please feel free to contact us.
- Other specification is also available, you can contact us for more information.
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different splices & joint & edge reinforcement
ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.
Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
|PTFE Mesh Belt|
|Belt Material||PTFE glass fabric||PTFE Kevlar fabric|
|Belt Edge||PTFE glass edge||PTFE film edge||PTFE Kevlar edge|
|Belt Guide||PTFE guide||Kevlar guide||Silicone guide|
|Belt Pin||Stainless Steel Pin||PTFE Pin||Alligator Pin|
