Description
Teflon coated mesh belt from ESONE, great belt for UV drying machine.
Teflon coated mesh belt YS6014 is coated with high quality PTFE resin, the basic material is woven fiberglass or aramid fabric (like Kevlar or Nomax). Since Teflon conveyor belt is non stick & heat resistant, the main applications are screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.

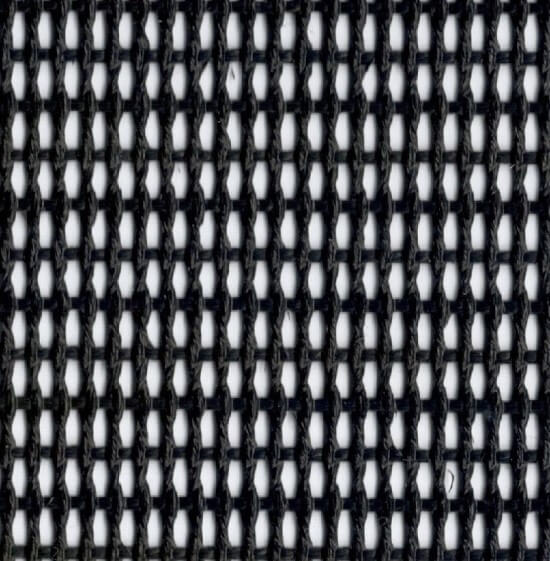

YS6014 is 2×2.5mm double weft, black color, is widely used for seafood processing, oat, oatmeal and other cereal product, jerky and other pets food, IR, HF or UV drying machines, non woven manufacturing industry and so on.
Property of Teflon coated mesh belt
Exceptional strength and dimensional stability.
ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items. And the basic material can be fiberglass, Kevlar or Nomax.
Resistance to UV
ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items.And the basic material can be fiberglass, Kevlar or Nomax.
Different mesh size is available according to the application request
From 1mm x 1mm, 2mm x 2.5mm, 2mm x 4mm, to 4mm x 4mm, 8mm x 8mm, 10mm x 10mm.
Operating temperature range from -70 to 260 degrees
light weight and cost effective
much better than metal conveyor belt
easy to replace and less expensive.
Has strong dielectric strength Could be Anti-static
Superior non-stick surface, easy to clean and release
Resistance to HF and RF
High chemical resistant
Outstanding non stick sufrace
The maximum width is 4000mm wide
Light weight, easy to install
Technical Data Sheet of PTFE coated belts YS6016
| 2 x 4 mm | 0.0787 x 0.1575 inches | |
| Tensile Strength | 330 N/cm Warp | 189 lbs/inches Warp |
| 470 N/cm Fill | 269 lbs/inches Fill | |
| Color | Brown | Brown |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
- Click here to find more spec of PTFE mesh belts.
- For samples of PTFE Belts, please feel free to contact us.
- Other specification is also available, you can contact us for more information.
- Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different Teflon coated mesh belt ment
- ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.
- Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
| PTFE Mesh Belt | |||
|---|---|---|---|
| Belt Material | PTFE glass fabric | PTFE Kevlar fabric | |
| Belt Joint | Bullnose | Alligator | Plastic |
| Belt Edge | PTFE glass edge | PTFE film edge | PTFE Kevlar edge |
| Belt Guide | PTFE guide | Kevlar guide | Silicone guide |
| Belt Pin | Stainless Steel Pin | PTFE Pin | Alligator Pin |
Applications of PTFE mesh belt
–Laminated glass manufacturing
PTFE mesh is used as release sheet for laminated glass manufacturing due to the non stick property and high porosity.
Laminated glass vacuum bag
—Packaging industry
Such as heat resistant conveyor belt for heat shrink packing, plastic bag sealing.
PTFE belt for Heat Shrink Packaging
—Textile industry
Teflon conveyor belt is used for drying of polyester wadding and Without glue cotton, and textile lamination machines, non woven fabric manufacturing, textile printing industry etc.
Non woven fabric drying belt
—Screen printing
Teflon belt is used to transport imprinted material though drying ovens and cooling oven, due to the non stick and heat resistant property.
Teflon conveyor belt
—Wood processing industry
Drying the painting for the wood, or curing of plywood and so on will use Teflon conveyor belt.
—Drying industry
Teflon coated mesh belt is used for food processing, such as granola, jerky, flour, seafood and so on.
ESONE mesh belt is available for UV, IR, HF drying system.
PTFE Conveyor belt for drying
Contact us for more information and get samples！
