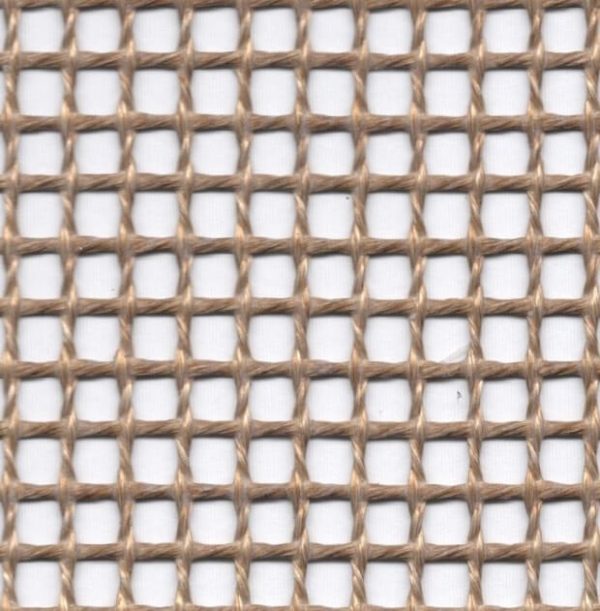

Teflon Belt YS6004

Teflon Belt YS6004

Teflon Belt is impregnated with PTFE(also called Teflon) resin, it is available in brown or black color, max width can reach 4.05m wide. To enhance the tracking and belt life, ESONE offers various styles of edging reinforcement and splices in order to match customer’s applications.

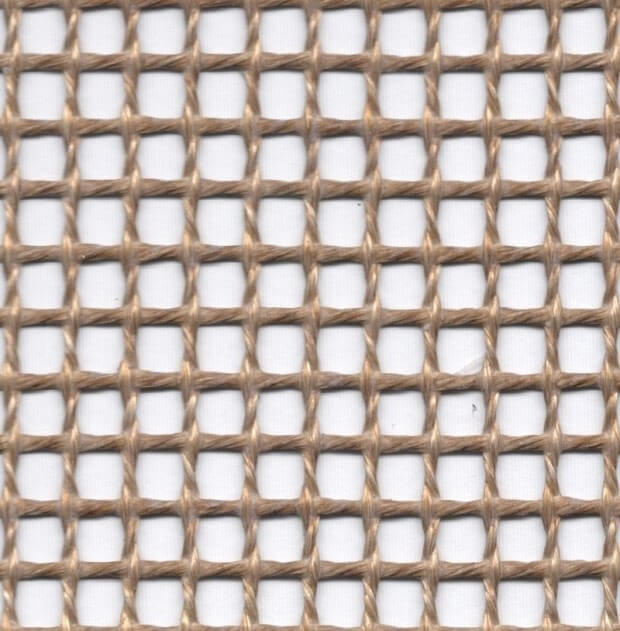

The mesh size of YS6004 is 4x4mm, the weft construction is single weft.

Another mesh size ranging from 1×1, 2×2.5, 2×4, 5×5, 8×8 to 10×10 is available, and the construction of open mesh fabric can be fiberglass, Kevlar or Nomex, the construction of weaving way can be double weft or single weft.

Category:

Description

Teflon Belt is impregnated with PTFE(also called Teflon) resin, it is available in brown or black color, max width can reach 4.05m wide. To enhance the tracking and belt life, ESONE offers various styles of edging reinforcement and splices in order to match customer’s applications.

Teflon Belt from ESONE, long lasting and perform well in high temperature

Teflon Belt is impregnated with PTFE(also called Teflon) resin, it is available in brown or black color, max width can reach 4.05m wide. To enhance the tracking and belt life, ESONE offers various styles of edging reinforcement and splices in order to match customer’s applications.

The mesh size of YS6004 is 4x4mm, the weft construction is single weft.

Another mesh size ranging from 1×1, 2×2.5, 2×4, 5×5, 8×8 to 10×10 is available, and the construction of open mesh fabric can be fiberglass, Kevlar or Nomex, the construction of weaving way can be double weft or single weft.

Properties of Teflon Belt YS6004

Non-toxic and compliant for food applications, FDA & LFGB certificated
Operating temperature range from -70 to 260 degrees
Has strong dielectric strength Could be Anti-static
Superior non-stick surface, easy to clean and release
Any sizes could be made, the maximum width is 4m

Controlled porosity, different mesh size from 1mm to 10mm could be made

Exceptional strength and dimensional stability.
Resistance to HF and RF
Resistance to UV
High chemical resistant
Light weight, easy to install

Applications of PTFE coated mesh YS6004

PTFE Grill Mesh

Due to the non stick property of PTFE coated mesh, YS6004 is widely used as grill mesh for home use or commercial use. By using ESONE YS6004, food will be crispy as heat air can pass through Teflon mesh.

And thanks to the non stick surface of Teflon net, this grill mesh is very easy to clean and dishwasher safe.

BBQ Grill Mesh

BBQ Grill Mesh

Laminated glass manufacturing

ESONE high quality PTFE open mesh fabric is used as the release liner for laminated glass manufacturing.

The reason why use Teflon mesh is as follows.

1)  PTFE open mesh fabric is non stick

2)  Teflon net is porosity, the production can be vacuumized easily.

3)  Mesh PTFE fabric has high mechanical strength, has long lifetime.

Laminated glass vacuum bag

Drying belt with high mechanical strength

Drying belt is the most common applications for PTFE mesh fabric.

Teflon open mesh belt can be easily found in food packaging, seafood processing, screen printing, pets food manufacturing, non woven manufacturing and many other applications

And Teflon open mesh belt which using strong fiberglass yarn has stronger mechanical strength and longer lasting property.

ESONE Teflon mesh belt for drying

Technical Data Sheet of PTFE conveyor belt YS6004

ProductProduct CategoryCoating
PTFE GLASS FABRICOPEN MESH SERIEPTFE
PropertiesMetricImperial
Standard width
Please ask for other widths
1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 4000 mm39.5, 59, 81, 98.4,110, 126, 132,142, 158 inches
Mesh Size4 x 4 mm0.1574 x 0.1574 inches
Weight460 g/m²13.57 oz/yd²
WeftSingle weftSingle weft
Tensile Strength320 N/cm Warp183 lbs/inches Warp
434 N/cm Fill248 lbs/inches Fill
ColorBrownBrown
Temperature Resistance-73 to +260 °C-100 to +500 °F
  • For samples of PTFE Mesh Conveyor Belt, please feel free to contact us.
  • Other specification is also available, you can contact us for more information.
  • Note:
    Weight Tolerance mm= ±%5
    All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
