Description
PTFE open mesh belt YS6018 is made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility.
Teflon open mesh belt YS6001S
PTFE open mesh belt YS6018 is made of PTFE coated fiberglass that offer super release properties, outstanding temperature resistance and exceptional flexibility. We design the best belts possible, our customers can achieve both maximum value and high performance.

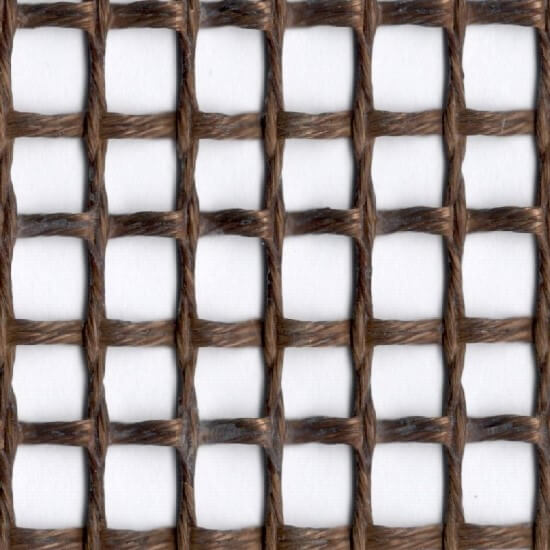

Teflon Belt YS6018 is a 8x8mm belting material for Textile manufacturing, Screen Printing, Food, Packaging, Electronic and other industries.
Specific performance of PTFE mesh fabric
Non-toxic and compliant for food applications, FDA & LFGB certificated
Operating temperature range from -70 to 260 degrees
Has strong dielectric strength Could be Anti-static
Any sizes could be made, the maximum width is 4m
Controlled porosity, different mesh size from 1mm to 10mm could be made
Exceptional strength and dimensional stability.
Great for architectural membrane
High chemical resistant
Light weight, easy to install
Resistance to HF and RF
Outstanding abrasion resistant
Resistance to UV
Technical Data Sheet of PTFE open mesh belt YS6008
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | OPEN MESH SERIE | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1400, 2000, 2800 mm | 39.5, 55, 78.7, 110 inches |
| Mesh Size | 8 x 8 mm | 0.3150 x 0.3150 inches |
| Tensile Strength | 350 N/cm Warp | 200 lbs/inches Warp |
| 480 N/cm Fill | 274 lbs/inches Fill | |
| Color | Brown | Brown |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
Click here to find more spec of PTFE mesh belts.
For samples of PTFE Belts, please feel free to contact us. Other specification is also available, you can contact us for more information.
Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different splices & joint & edge reinforcement
ESONE is not only offering the full range of PTFE open mesh belt, but also providing any kinds of splices & joints & edge reinforcement.
Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
| PTFE Mesh Belt | |||
|---|---|---|---|
| Belt Material | PTFE glass fabric | PTFE Kevlar fabric | |
| Belt Joint | Bullnose | Alligator | Plastic |
| Belt Edge | PTFE glass edge | PTFE film edge | PTFE Kevlar edge |
| Belt Guide | PTFE guide | Kevlar guide | Silicone guide |
| Belt Pin | Stainless Steel Pin | PTFE Pin | Alligator Pin |
