PTFE Mesh Conveyor Belt, long lasting screen printing belt

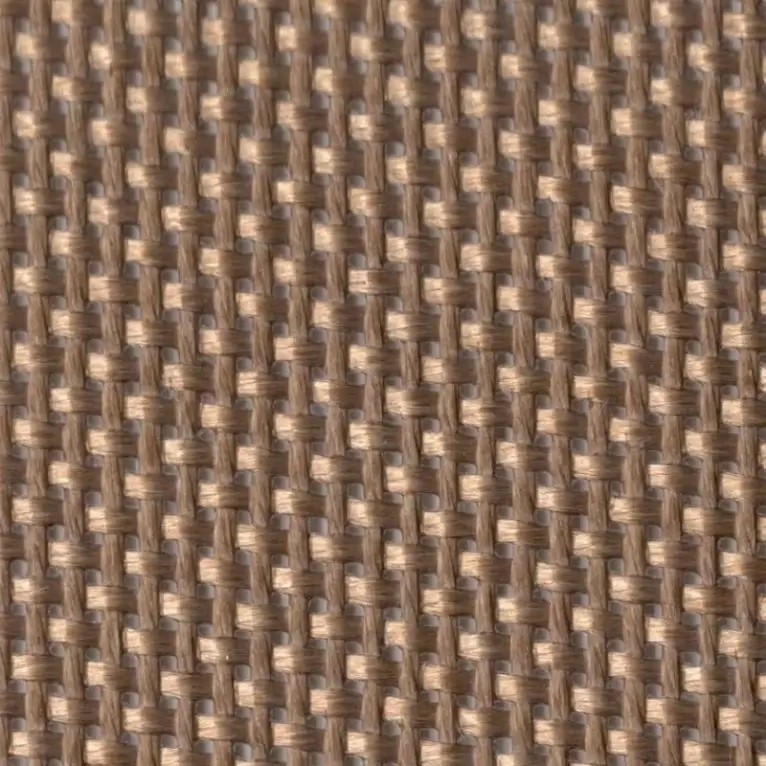

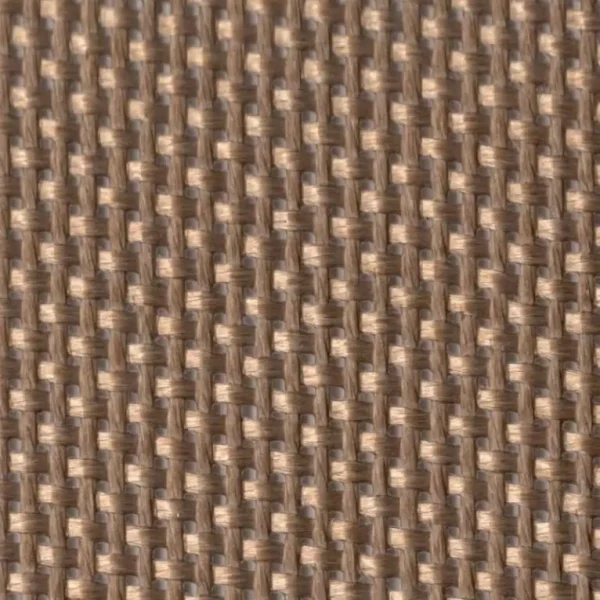

PTFE Conveyor Belt YS6001, with 1x1mm mesh size, it is perfect heat resistant solution for drying, printing, non-woven, apparel industry and others.
PTFE Conveyor Belts is made of PTFE coated Fiberglass Fabrics, it is perfect for many drying application, screen print dryers, shrink tunnels and many other industries need high temperature.
For example, like T-shirts, Paper industry, Glass industry, Shoe or Apparel industry, Non-woven fabric, Print Dryers, Vinyl carpet, printed circuit boards and so on.
Properties of PTFE mesh conveyor belt
Exceptional strength and dimensional stability.
Operating temperature range from -70 to 260 degrees
Has strong dielectric strength Could be Anti-static
Superior non-stick surface, easy to clean and release
Any sizes could be made, the maximum width is 4m
Controlled porosity, different mesh size from 1mm to 10mm could be made
Food grade, can touch food directly
Resistance to HF and RF
High chemical resistant
Light weight, easy to install
Resistance to UV
Technical Data of PTFE conveyor belt YS6001:
|PTFE GLASS FABRIC||OPEN MESH SERIE||PTFE|
Please ask for other widths
|1000, 1500, 2050, 2600,2800, 3200,3650, 4000 mm||39.5, 59, 81, 102.5, 110, 126,144, 158 inches|
|Mesh Size||1 x 1 mm||0.0393 x 0.0393 inches|
|Tensile Strength||446 N/cm Warp||255 lbs/inches Warp|
|330 N/cm Fill||189 lbs/inches Fill|
|Temperature Resistance||-73 to +260 °C||-100 to +500 °F|
- For samples of PTFE Conveyor Belt, please feel free to contact us.
- Other specification is also available, you can contact us for more information.
Weight Tolerance mm= ±%5
All technical data of PTFE Conveyor Belt is based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different splices & joint & edge reinforcement
- ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.
- Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
|PTFE Mesh Belt|
|Belt Material||PTFE glass fabric||PTFE Kevlar fabric|
|Belt Edge||PTFE glass edge||PTFE film edge||PTFE Kevlar edge|
|Belt Guide||PTFE guide||Kevlar guide||Silicone guide|
|Belt Pin||Stainless Steel Pin||PTFE Pin||Alligator Pin|
