Description
PTFE Belt, heat resistant and non stick PTFE open mesh conveyor belt
PTFE Belt YS6015 is coated with high quality PTFE resin, the basic material is woven fiberglass or aramid fabric (like Kevlar) or Nomax. Since Teflon conveyor belt is non stick & heat resistant, the main applications are screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.
Property of PTFE belt
Operating temperature range from -70 to 260 degrees
light weight and cost effective
much better than metal conveyor belt
easy to replace and less expensive.
Has strong dielectric strength Could be Anti-static
Superior non-stick surface, easy to clean and release
Exceptional strength and dimensional stability.
ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items. And the basic material can be fiberglass, Kevlar or Nomax.
Resistance to UV
ESONE can enhance the tensile strength for machines, which has small roller or has high speed or need high mechanical strength belt or transporting heavy items.And the basic material can be fiberglass, Kevlar or Nomax.

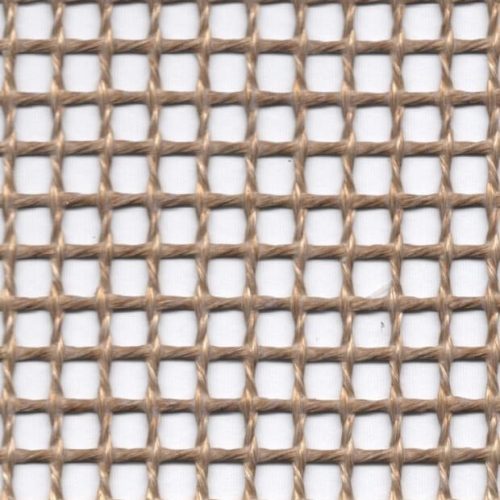

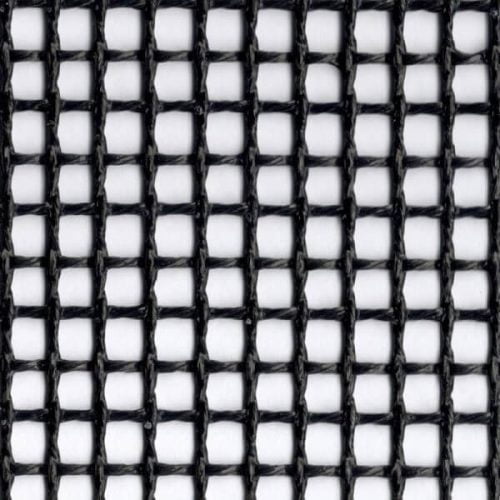

Different mesh size is available according to the application request
From 1mm x 1mm, 2mm x 2.5mm, 2mm x 4mm, to 4mm x 4mm, 8mm x 8mm, 10mm x 10mm.
Resistance to HF and RF
High chemical resistant
Outstanding non stick sufrace
The maximum width is 4000mm wide
Light weight, easy to install
Technical Data Sheet of PTFE coated belts YS6016
Esone Teflon open mesh conveyor belt has a good performance during operation due to the good quality. We have a widely range of sizes for customers choosing. Special requirement for edge reinforcement and belt joint can be made according to request.
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | OPEN MESH SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 2050, 2600, 2800, 3200,3650, 4000 mm | 39.5, 59, 81, 102.5, 110, 126, 144, 158 inches |

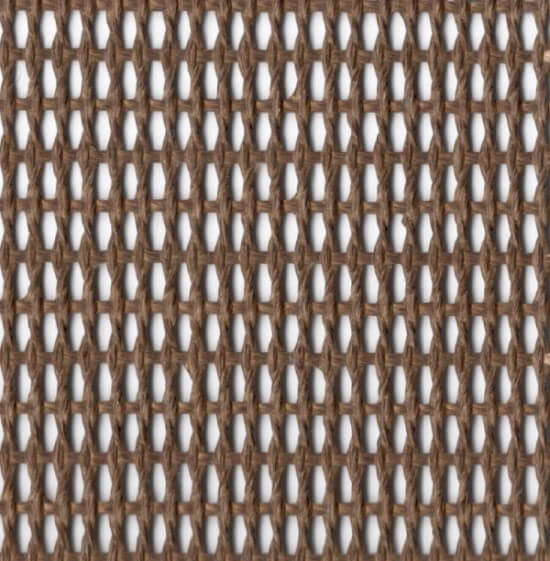

| Mesh Size | 2×2.5 mm | 2×2.5 mm |
| Tensile strength | 290 N/cm Warp | 166 lbs/inches Warp |
| 400 N/cm Fill | 229 lbs/inches Fill | |
| Color | Brown | Brown |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
- For samples of PTFE Belt, please feel free to contact us.
- Other technical data sheet is also available, please contact us for more information.
- Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. Though these values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
Applications of PTFE mesh belt
–Laminated glass manufacturing
PTFE mesh is used as release sheet for laminated glass manufacturing due to the non stick property and high porosity.
Laminated glass vacuum bag
—Packaging industry
Such as heat resistant conveyor belt for heat shrink packing, plastic bag sealing.
PTFE belt for Heat Shrink Packaging
—Textile industry
Teflon conveyor belt is used for drying of polyester wadding and Without glue cotton, and textile lamination machines, non woven fabric manufacturing, textile printing industry etc.
Non woven fabric drying belt
—Screen printing
Teflon belt is used to transport imprinted material though drying ovens and cooling oven, due to the non stick and heat resistant property.
Teflon conveyor belt
—Wood processing industry
Drying the painting for the wood, or curing of plywood and so on will use Teflon conveyor belt.
—Drying industry
Teflon coated mesh belt is used for food processing, such as granola, jerky, flour, seafood and so on.
ESONE mesh belt is available for UV, IR, HF drying system.
PTFE Conveyor belt for drying
Contact us for more information and get samples！
