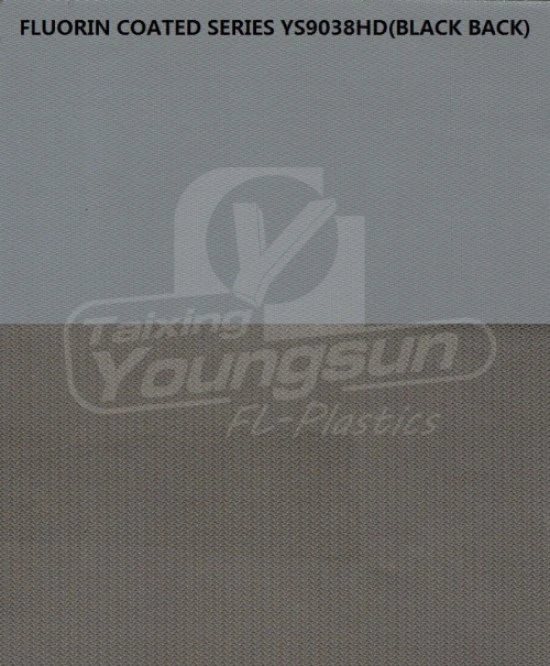

16.5 oz One Side PTFE impregnated Fabric, specially for Thermal insulation jackets
- PTFE impregnated Fabric 16.5 oz, coated with one side Fluorin(PTFE), has high tensile strength, is UV resistant and Flame resistant, the model number is YS9038HD. The color can be Gray, white, yellow, black, red or other colors.
- It is the heat resistant & Corrosion resistant solution for Insulation Jacket!
- Applications of Fluorin coated series include wrapping insulation for pumps, filters, exchange, pipeline, valves, freeze protection and so on, it’s wraped outside the insulation blanket, as this fabric is anti-aging, anti-chemical and anti-environment.
- Different color is used for different application, such as steam pipeline, oil pipeline or gas pipeline.
Properties of 16.5 oz One Side PTFE impregnated Fabric
High chemical resistant
Continuous working from -70°C to +260°C
Resistance to UVs and IRs
Non-stick surface, good self-cleaning
How to make Insulation jacket by One side PTFE impregnated fabric
- Operating at 600°F and up
- Inside Jacket: Flat Stainless Steel Mesh
- Outside Jacket: 16.5 oz One side PTFE Impregnated Fabric, or 18 oz Both side PTFE impregnated Fabrics.
- Liner: 18oz Silica Fabric
- Liner: Crimped .011 Stainless Steel Mesh
- Insulation: E-Glass
- Fiberglass Fabric
- Fastening: 1″ Straps and Stainless Steel D-Rings
- Fastening: 3/16″ Braided Kevlar Drawstrings
- Fastening: 12ga Stainless Steel Lace Hooks and Quilt Pins
- Thread: Kevlar Thread
Spec of One Side PTFE impregnated Fabric YS9038HD
|16.5 oz One Side PTFE impregnated Fabric YS9038HD|
|Basic Fabric||Satin weaved fiberglass||Satin weaved fiberglass|
|Coating||One side||One side|
Please ask for other widths
|1500 mm||60 inches|
|Coated Weight||560 g/m²||16.5 oz/yd²|
|Thickness||0.38 mm||0.015 inches|
|Tensile strength||Warp 3572 N/5cm||410 lbs/inches|
|Fill 2679 N/5cm||350 lbs/inches|
|Mullen Burst||455 N/cm²||650 psi|
|Flame Resistant||Char Length 2.54 cm max||Char Length 1 inch max|
|Afterglow 1 second max||Afterglow 1 second max|
|Flame Out 1 second max||Flame Out 1 second max|
|Temperature resistance||-73 to +315 °C||-100 to 600 °F|
|UV Resistance||1000 hours; no change in tensile||1000 hours; no change in tensile|
Click here to download the spec of YS9038HD-ESONE
Applications of 16.5 oz Anti static Teflon coated fabric
Pump Insulation Covers
Removable Insulation Jackets are designed for Pumps, filters, exchange, pipeline, valves, freeze protection and so on.
And different color is for different application, like Yellow insulation jacket is for Gas, Oil and Steam value, pumps and so on.
Antiseptic Insulation Tent
- Thermal Insulation Blankets could also be used for making Antiseptic Insulation Tent, which could be used to store chemicals(especially for flammable and combustible chemicals), or easy-corrosive, hazardous article.
